BRAKE DISC

Brake disc offer better stopping performance because the disc is more readily cooled.

Design Features

The brake disc is the component of a disc brake against which the brake pads are applied. The material is flake graphite cast iron typically Grey Iron for automotive brake disc. The design of the disc varies from simply solid and ventilated. The weight and power of the vehicle determines the need for ventilated discs. The "ventilated" disc design helps to dissipate the generated heat and is commonly used on the more-heavily-loaded front discs. Brake disc offer better stopping performance because the disc is more readily cooled.

Size Range

  • 200mm to 300 mm dia ( 8" to 12")

Material of Construction

  • Flake Graphite Cast Iron

Specification

  • MS 131-50 Grey Cast Iron for Automotive Brake Disc, Drum,
  • MS 131-17 Grey Cast Iron for Automotive Brake Disc, Drum

Standard Compliance

  • Conforming to JIS G5501 (95)- FC 250 , ASTM A247-67

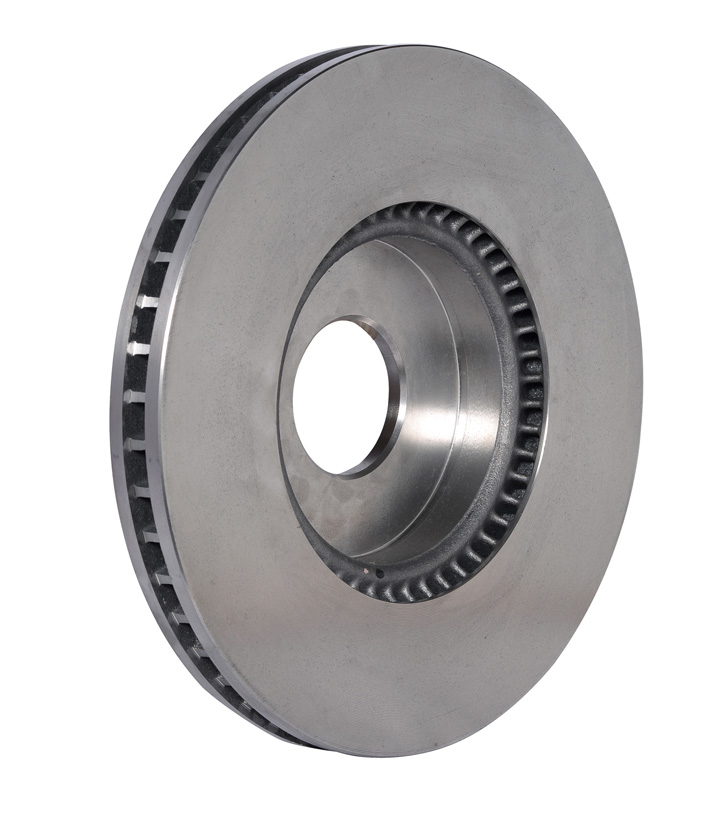

break-disc-detail
