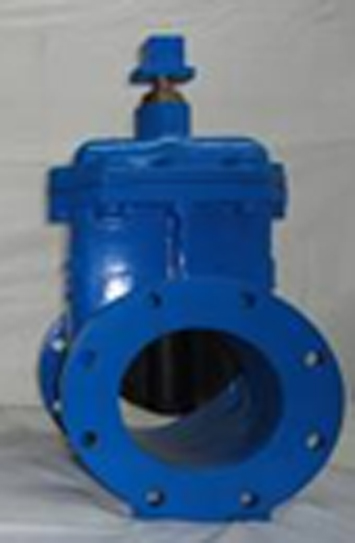

RESILIENT SEATED GATE VALVE

Lightweight design offers a robust and durable extended life performance

Design Features

SAAPL Resilient Seated Gate Valve is of lightweight design and construction of ductile iron offers a robust and durable extended life performance. Valves can either be used above ground or buried service applications and are maintenance free. The valves seal - wedge constitutes the heart of the valve. It must travel easily and remain 100% leak tight. The waterway is clear, unobstructed and free from pockets to allow smooth flow of water.

Size Range

  • 50mm to 300 mm dia ( 2" to 12")

Salient Features

  • 100 % Leak tight
  • Ductile Iron Wedge with all around EPDM encapsulation
  • Compact Design & Lightweight
  • Varied Applications
  • Operation by Hand wheel, Gearboxes, Actuation (Electric or Pneumatic)
  • WRAS approved Materials
  • Epoxy coated to minimum 250 microns, internally and externally

Application

  • Potable Water Distribution, Raw Water, Effluent systems, Irrigation, Fire Protection Pumping systems, Industry, Cooling Water systems.
Resilient Seated Gate Valve

Material of construction

S.NO Name Material
01 Body Ductile Iron
02 Wedge Ductile Iron encapsulated with EPDM rubber
03 Pressure Rating 125, 150 psi
04 Working temperature 90 Deg. C
05 Valve type Non Rising Stem
06 End Connection Flanged
